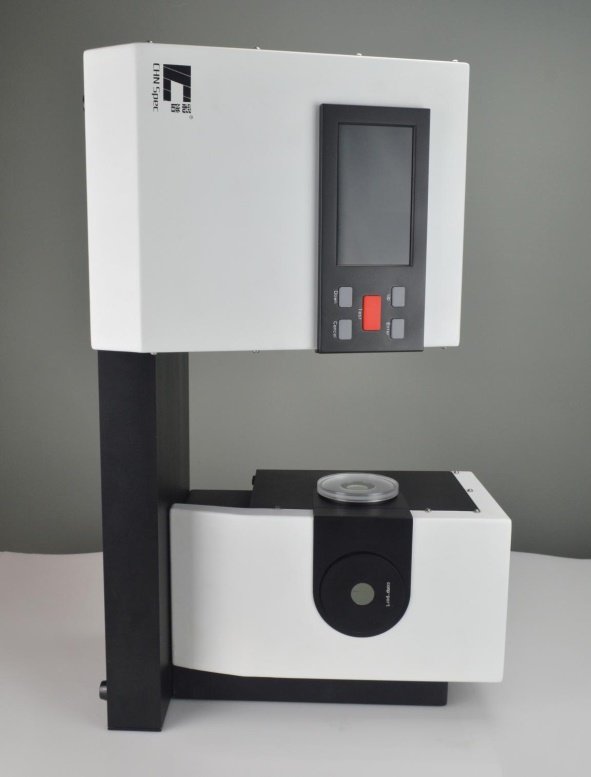

Haze Meter
    CS-720

      CS-720

      CS-720

      It is designed for plastic, films, glass, LCD panel, touch screen and other transparent and semi-transparent materials color, haze and transmittance measurement.

      Instrument Introduction
      1. Conform to ASTM and ISO standard. 3 kinds of light sources A,C and D65 for haze measurement.

      2. It can realize transmittance compensation measurement which can provide higher accuracy test result.

      3. Open measurement area, no limit on sample size. Vertical measurement is also available.

      4. Different fixtures to meet the measurement requirement for sheet material and liquid in different shapes.

      5. Instrument is with haze and transmittance measurement software.

      Instrument Details



      Liquid Measurement                             Sheet Material Measurement

      Cap for Compensation Port               0% Calibration Cap

      Type Color and Haze CS-720
      Light Source CIE-A,CIE-C,CIE-D65
      Chromaticity Value:A,C,D50,D55,D65,D75,F1,F2,F3,F4,F5,F6,F7,F8,F9,F10,F11,F12,CMF,U30,DLF,NBF,TL83,TL84
      Standards ASTM D1003/D1044,ISO13468/ISO14782,
      CIE No.15,ISO 7724/1,ASTM E1164,DIN 5033 Teil7,
      JIS Z8722 Condition c
      Parameters HAZE,Transmittance(T),Spectral Transmittance,
      Whiteness Index (ASTM E313-00,ASTM E313-73，CIE/ISO，AATCC，Hunter，Taube Berger Stensby)
      Yellowness Index (ASTM D1925，ASTM E313-00，ASTM E313-73)
      Tint(ASTM E313-00),Metamerism Index,Milm
      APHA,Pt-Co,Gardner,Color Difference(ΔE*ab,ΔE*CH,ΔE*uv,ΔE*cmc(2:1),ΔE*cmc(1:1),ΔE*94,ΔE*00)
      Spectral Response CIE Luminosity function y
      Wavelength 400-700nm
      Wavelength Interval 10nm
      Geometry 0/d
      Measurement Area/Sample Port 16.5mm/21mm
      Measurement Range 0-100%
      Haze Resolution 0.01
      Haze Repeatability ≤0.1
      Sample Size Thickness≤150mm
      Display 5 inch TFTLCD screen
      Memory 20000 values
      Interface USB
      Power 220V
      Working Temperature 10-40℃
      Storage Temperature 0-50℃
      Size (LxWxH) 598mmX247mmX366mm
      Standard Accessory PC software (Color QC)
      Optional Measurement Fixture, Haze standard film






      1. One year warranty.
